TEM SERIES EVAPORATOR/TEM SERIES UNIT AIR COOLRE
Here is TEM series evaporator(air cooler),It can be used in cold room（ storage ） engineering and refrigeration field.We have models as TEM80E,TEM100E,TEM160E,TEM200E,TEM300E,TEM400E,TEM500E,TEM600E
TEM Series Dual Discharge Air Cooler
The TEM range dual discharge unit coolers are suitable for application in reach-in/walk-in cabinets, display cases and small rectangular based
cold rooms.
The entire range is equipped with high efficiency coils made from special profile aluminum fins and copper tube, suitable for the new
generation refrigerants; with 4,5/9 mm dual fin spacing for the entire range (for room temperature ≥ -25℃)
The standard fan motors employed have the following features:
lDiameter 254 mm, single-phase 230V/1/50-60Hz and fiberglass charged polyamide fan guard;
lIP42 protection grade;
lClass B insulation;
lInternal thermal contact protection;
lOperating temp. -35℃~ +40℃
Technical features
|
Model |
TEM |
80E |
100E |
160E |
200E |
300E |
400E |
500E |
|
Cooling Capacity(W) T.Room -25℃, Δt=7K |
590 |
660 |
1170 |
1330 |
1990 |
2660 |
3330 |
|
|
Air flow |
m3/h |
600 |
520 |
1200 |
1040 |
1560 |
2080 |
2600 |
|
Air throw |
m |
2x3.5 |
2x3 |
2x3.5 |
2x3 |
2x3 |
2x3 |
2x3 |
|
Total surface |
m2 |
2.6 |
3.9 |
5.2 |
7.9 |
11.8 |
15.7 |
19.7 |
|
Pipe volume |
Dm3 |
0.7 |
1 |
1.4 |
1.92 |
3 |
4 |
5 |
|
Fan motors |
n×φmm |
1x254 |
1x254 |
2x254 |
2x254 |
3x254 |
4x254 |
5x254 |
|
Motor power consumption |
A |
0.5 |
0.5 |
1 |
1 |
1.5 |
2 |
2.5 |
|
W |
70 |
70 |
140 |
140 |
210 |
280 |
350 |
|
|
Electrical defrost |
W |
810 |
810 |
1350 |
1350 |
1890 |
2430 |
2970 |
|
Model |
TEM |
80E |
100E |
160E |
200E |
300E |
400E |
500E |
|

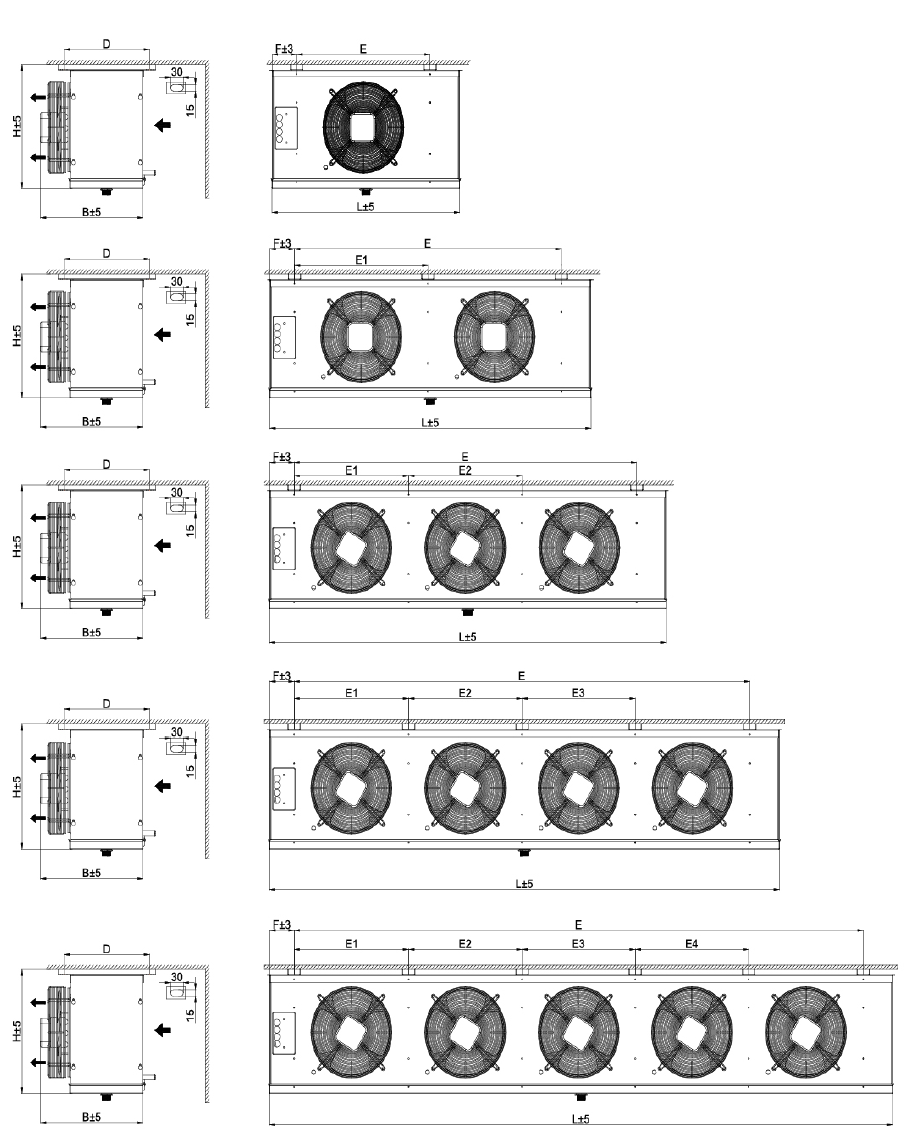

Dimension |
A |
430 |
430 |
730 |
730 |
1030 |
1330 |
1630 |
|
B |
320 |
320 |
620 |
620 |
920 |
1220 |
1520 |
|
|
C |
172 |
172 |
185 |
185 |
185 |
185 |
185 |
|
|
D |
30 |
30 |
30 |
30 |
30 |
35 |
35 |
|
|
Connections |
In(SAE) |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
Out(mm) |
12 |
16 |
16 |
16 |
22 |
22 |
22 |
|
|
Φ(GAS) |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1 |
1 |
